一、硬件配置环境
|
华为 鲲泰KUNTAI A722 服务器整机硬件配置参数如下 |
||
|
型号/规格 |
单位 |
数量 |
|
华为 鲲泰KUNTAI A722 服务器 |
台 |
1 |
|
百维7.68T 2.5寸 SATA 企业级SSD（SS821） |
块 |
1 |
二、软件配置环境
|
华为 鲲泰KUNTAI A722 服务器整机软件配置参数如下 |
|||
|
服务器 |
华为 鲲泰KUNTAI A722 服务器 |
||
|
操作系统及内核 |
Kylin Linux Advanced Server V10 SP3 (Build 2403)/4.19.90-89.11.v2401.ky10.aarch64 |
||
|
BMC版本 |
3.11 |
||
|
BIOS版本 |
6.7 |
||
|
fio版本 |
fio-3.7 |
||
三、实测数据与官网数据
|
百维7.68T 2.5寸 SATA 企业级SSD（SS821）实测数据 |
官网数据 |
备注 |
|||||||||
|
测试模式 (rw) |
块大小 (bs) |
队列深度 (iodepth) |
线程数 (numjobs) |
测试大小 (size) |
IOPS |
带宽 (BW) |
平均延迟 (lat) |
测试模式 |
官网数据 |
达成率 |
|
|
顺序写 (write) |
128k |
32 |
1 |
10g |
3,598 |
450 MiB/s |
8.89 ms |
|
|
|
|
|
顺序写 (write) |
128k |
32 |
30 |
10g |
3,644 |
456 MiB/s |
263.39 ms |
最大顺序写入速度 |
520MB/s |
87.69% |
|
|
顺序写 (write) |
128k |
32 |
10 |
400g |
3,644 |
456 MiB/s |
87.80 ms |
||||
|
顺序读 (read) |
128k |
32 |
1 |
10g |
3,801 |
475 MiB/s |
8.42 ms |
|
|
|
|
|
顺序读 (read) |
128k |
32 |
30 |
10g |
3,899 |
487 MiB/s |
246.16 ms |
最大顺序读取速度 |
560MB/s |
87.14% |
|
|
顺序读 (read) |
128k |
32 |
10 |
400g |
3,901 |
488 MiB/s |
82.01 ms |
||||
|
随机写 (randwrite) |
4k |
32 |
30 |
10g |
52,900 |
207 MiB/s |
18.15 ms |
4K随机写入 |
45KIOPS |
117.55% |
|
|
随机读 (randread) |
4k |
32 |
30 |
10g |
66,700 |
261 MiB/s |
14.38 ms |
4K随机读取 |
95KIOPS |
70.21% |
|
|
顺序写 (write) |
4k |
1 |
1 |
1g |
28,800 |
112 MiB/s |
0.034 ms |
|
|
|
|
|
顺序读 (read) |
4k |
1 |
1 |
1g |
15,500 |
60.5 MiB/s |
0.064 ms |
|
|
|
|
|
随机写 (randwrite) |
4k |
1 |
1 |
1g |
28,700 |
112 MiB/s |
0.034 ms |
|
|
||
|
随机读 (randread) |
4k |
1 |
1 |
1g |
15,400 |
60.1 MiB/s |
0.064 ms |
|
|
|
|
四、官网参数来源

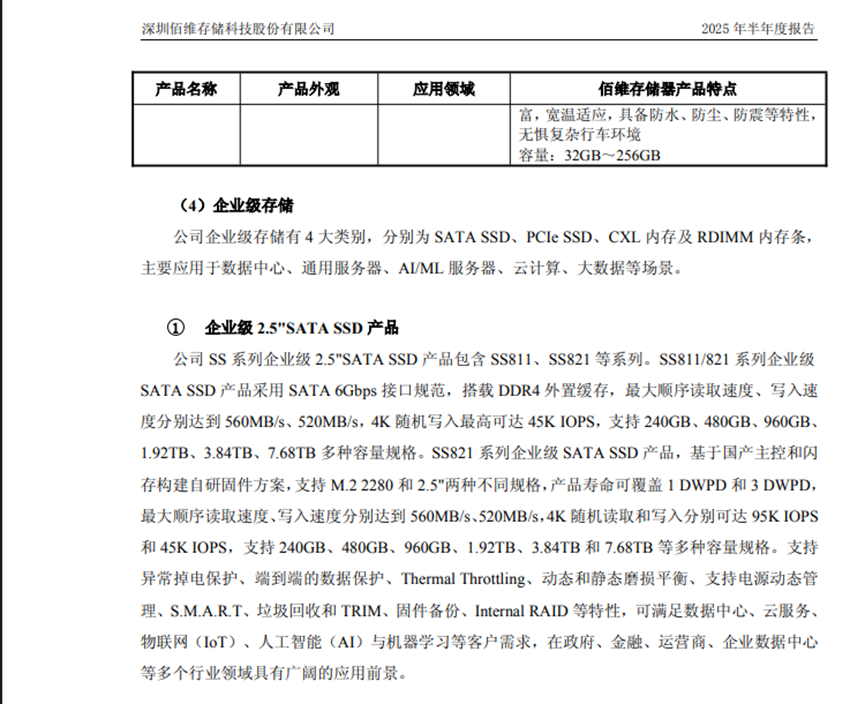

官网参数
下载为PDF后第24张图
五、实测数据图片
顺序写

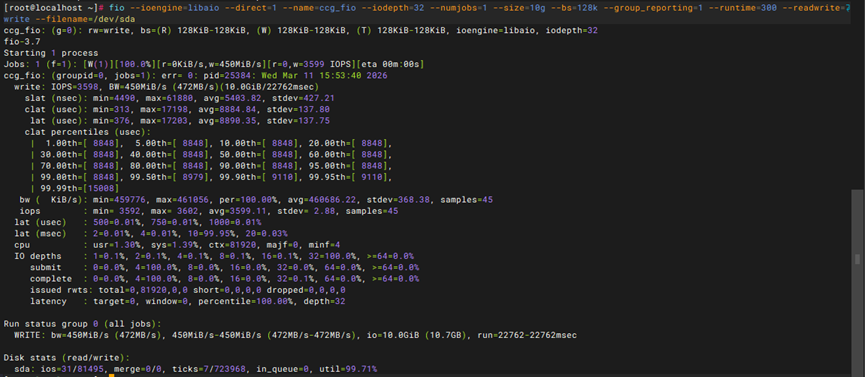

10g1线程
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=1 –size=10g –bs=128k –group_reporting=1 –runtime=300 –readwrite=write –filename=/dev/sda

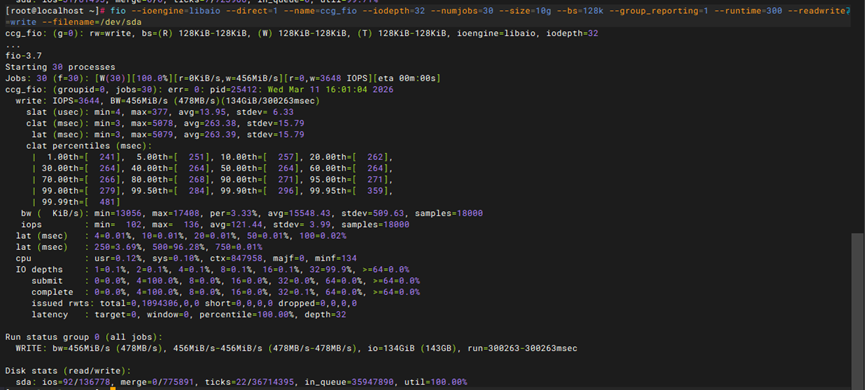

10G30线程
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=30 –size=10g –bs=128k –group_reporting=1 –runtime=300 –readwrite=write –filename=/dev/sda

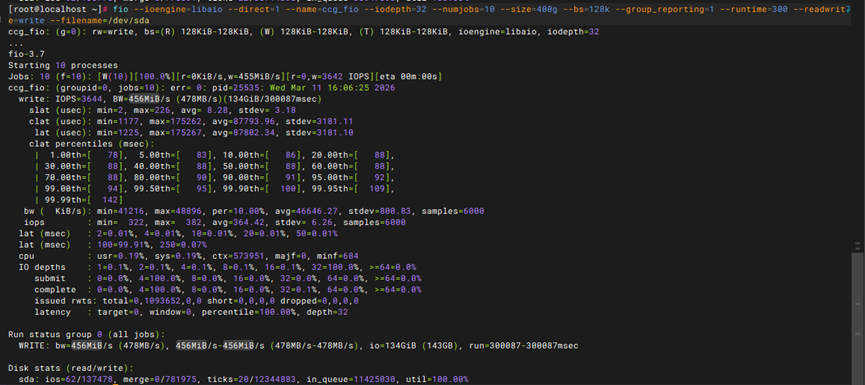

400G 10线程
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=10 –size=400g –bs=128k –group_reporting=1 –runtime=300 –readwrite=write –filename=/dev/sda
顺序读

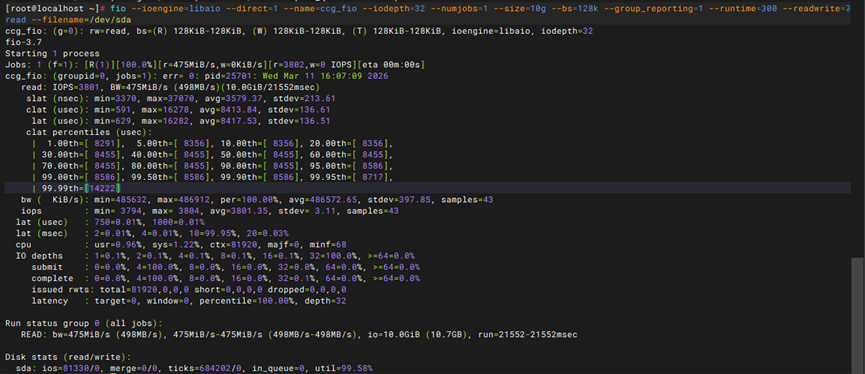

10g1线程
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=1 –size=10g –bs=128k –group_reporting=1 –runtime=300 –readwrite=read –filename=/dev/sda

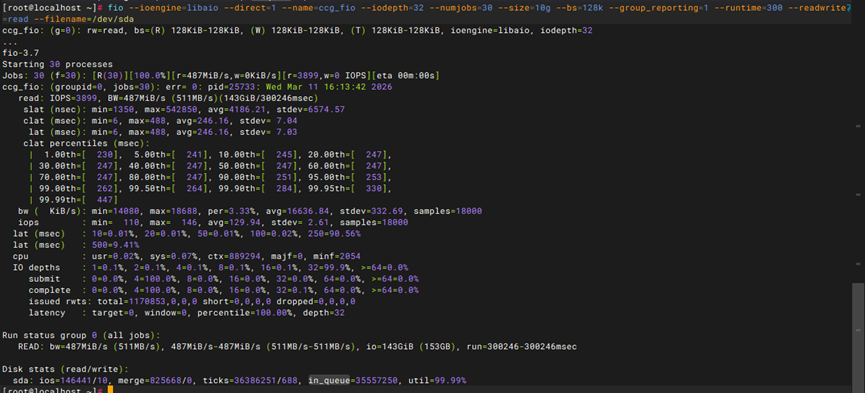

10G30线程
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=30 –size=10g –bs=128k –group_reporting=1 –runtime=300 –readwrite=read –filename=/dev/sda

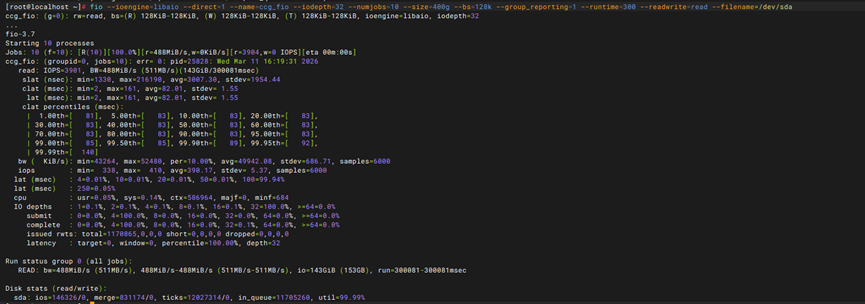

400G 10线程
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=10 –size=400g –bs=128k –group_reporting=1 –runtime=300 –readwrite=read –filename=/dev/sda

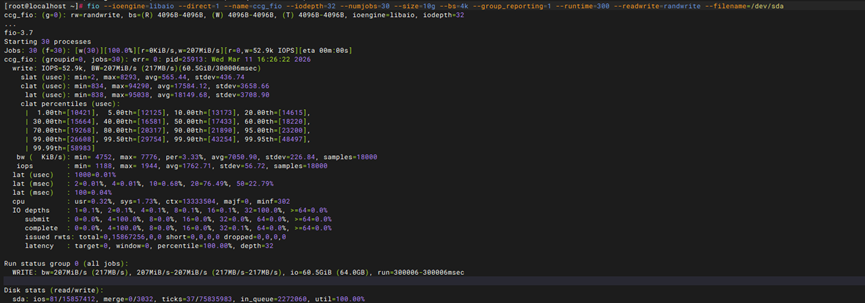

随机写
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=30 –size=10g –bs=4k –group_reporting=1 –runtime=300 –readwrite=randwrite –filename=/dev/sda

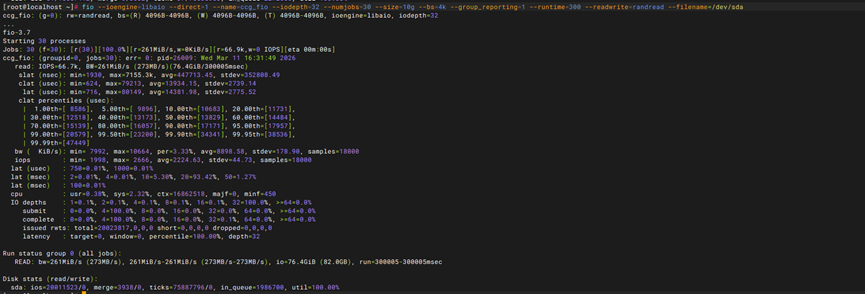

随机读
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=32 –numjobs=30 –size=10g –bs=4k –group_reporting=1 –runtime=300 –readwrite=randread –filename=/dev/sda
延时

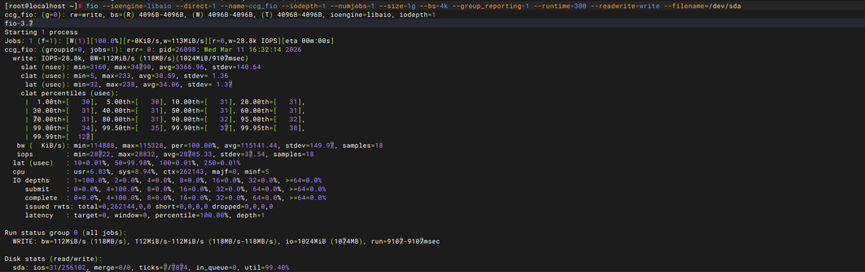

顺序写
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=1 –numjobs=1 –size=1g –bs=4k –group_reporting=1 –runtime=300 –readwrite=write –filename=/dev/sda

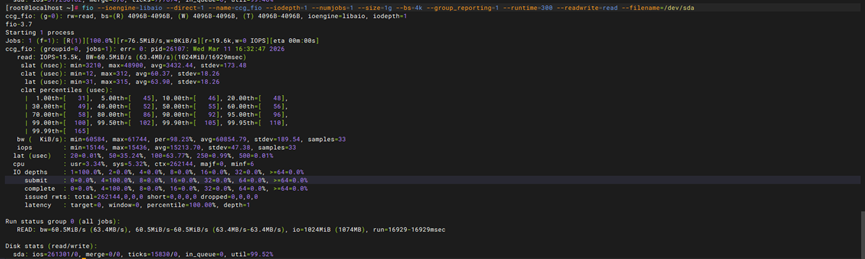

顺序读
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=1 –numjobs=1 –size=1g –bs=4k –group_reporting=1 –runtime=300 –readwrite=read –filename=/dev/sda

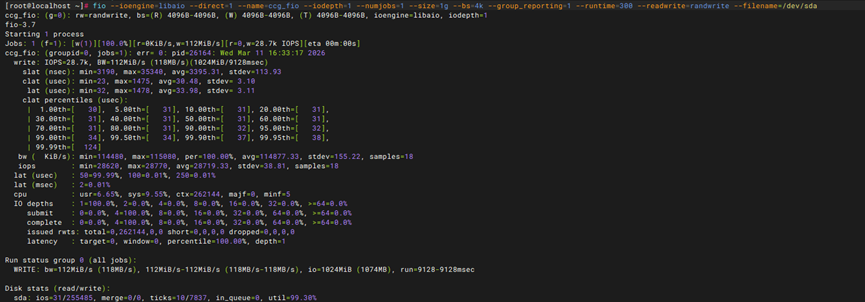

随机写
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=1 –numjobs=1 –size=1g –bs=4k –group_reporting=1 –runtime=300 –readwrite=randwrite –filename=/dev/sda

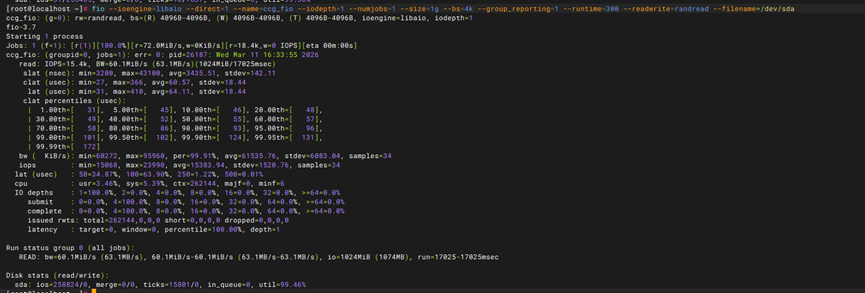

随机读
fio –ioengine=libaio –direct=1 –name=ccg_fio –iodepth=1 –numjobs=1 –size=1g –bs=4k –group_reporting=1 –runtime=300 –readwrite=randread –filename=/dev/sda

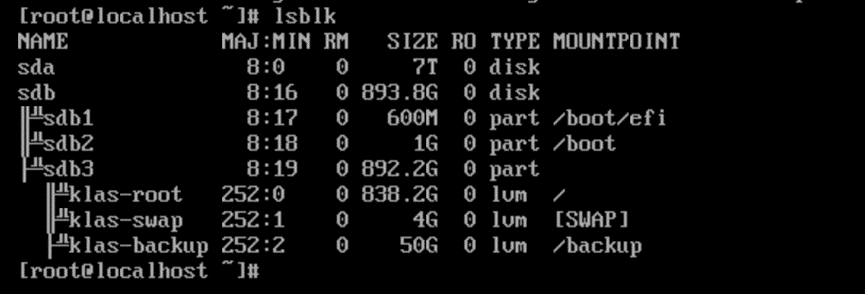

系统下识别硬盘

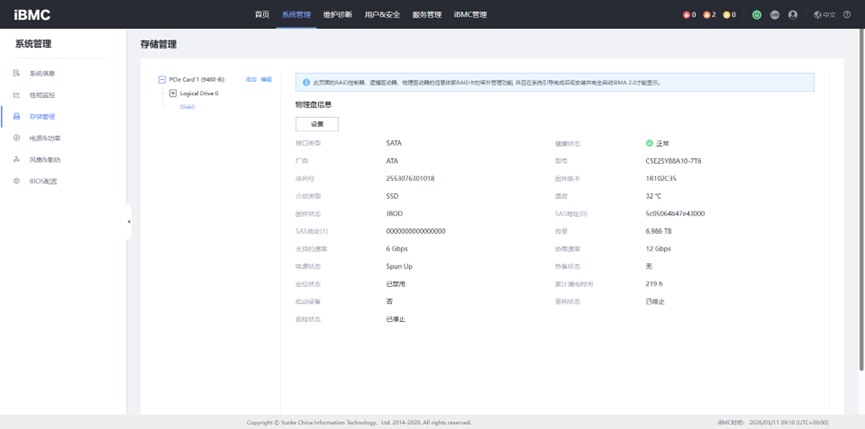

Bmc识别硬盘

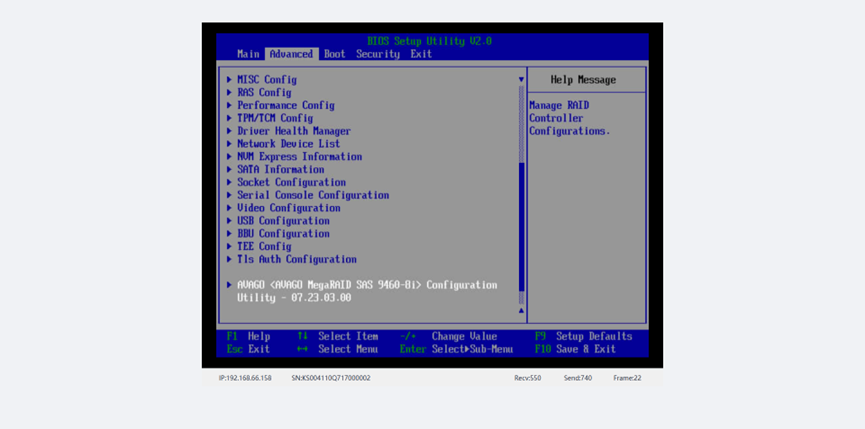

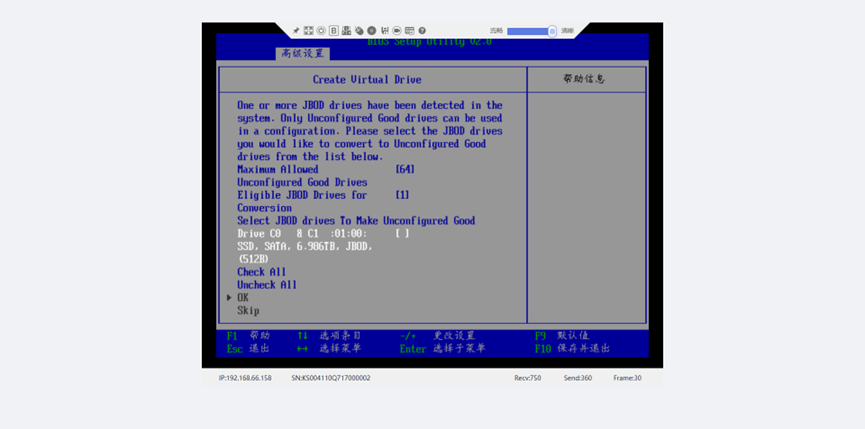

Bios 阵列卡下识别：

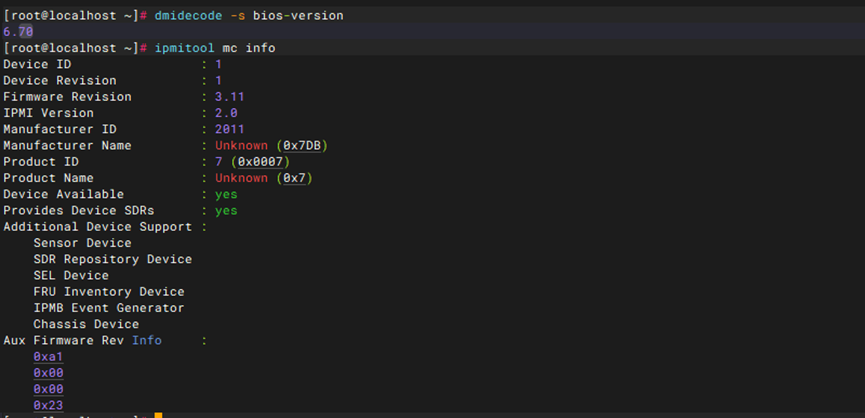

BMC和BIOS版本
本次测试基于MegaRAID SAS 9460-8i卡进行的
